As the semiconductor industry continues to advance, the requirements for machining accuracy and reliability of equipment components are steadily increasing. Critical parts such as vacuum chambers, structural components, and precision mechanical parts must operate for extended periods in high-vacuum environments. Therefore, geometric tolerances such as flatness, position accuracy, perpendicularity, and parallelism must be strictly controlled to ensure stable equipment performance.

Under these manufacturing requirements, precision machining centers with high-rigidity machine structures have become essential for maintaining consistent machining quality. In particular, 5-axis machining centers, which provide simultaneous multi-axis motion, can significantly improve machining efficiency while maintaining high precision. As a result, they have become indispensable equipment in semiconductor equipment manufacturing.

Compared with traditional 3-axis machines, the greatest advantage of a 5-axis CNC machine tool is its ability to control five axes simultaneously, allowing the cutting tool to approach the workpiece from the optimal angle. This machining method can effectively improve machining quality while reducing positioning and machining errors.

In precision manufacturing, 5-axis machining equipment generally offers the following advantages:

Single Setup for Multi-Surface Machining:

Through simultaneous 5-axis motion control, multiple surfaces of a workpiece can be machined in a single setup, significantly reducing setup errors and improving overall machining accuracy.

Capability for Complex Surface Machining:

5-axis machining technology enables the production of complex curved surfaces and intricate geometries. As a result, it is widely used in mold machining and aerospace component manufacturing.

Improved CNC Machining Efficiency:

By maintaining the optimal tool orientation and using shorter cutting tools, vibration can be reduced and cutting stability improved, resulting in higher machining efficiency and better surface quality.

Therefore, 5-axis CNC machine tools have become essential equipment in high-precision manufacturing fields such as CNC machining, mold machining, and semiconductor machining.

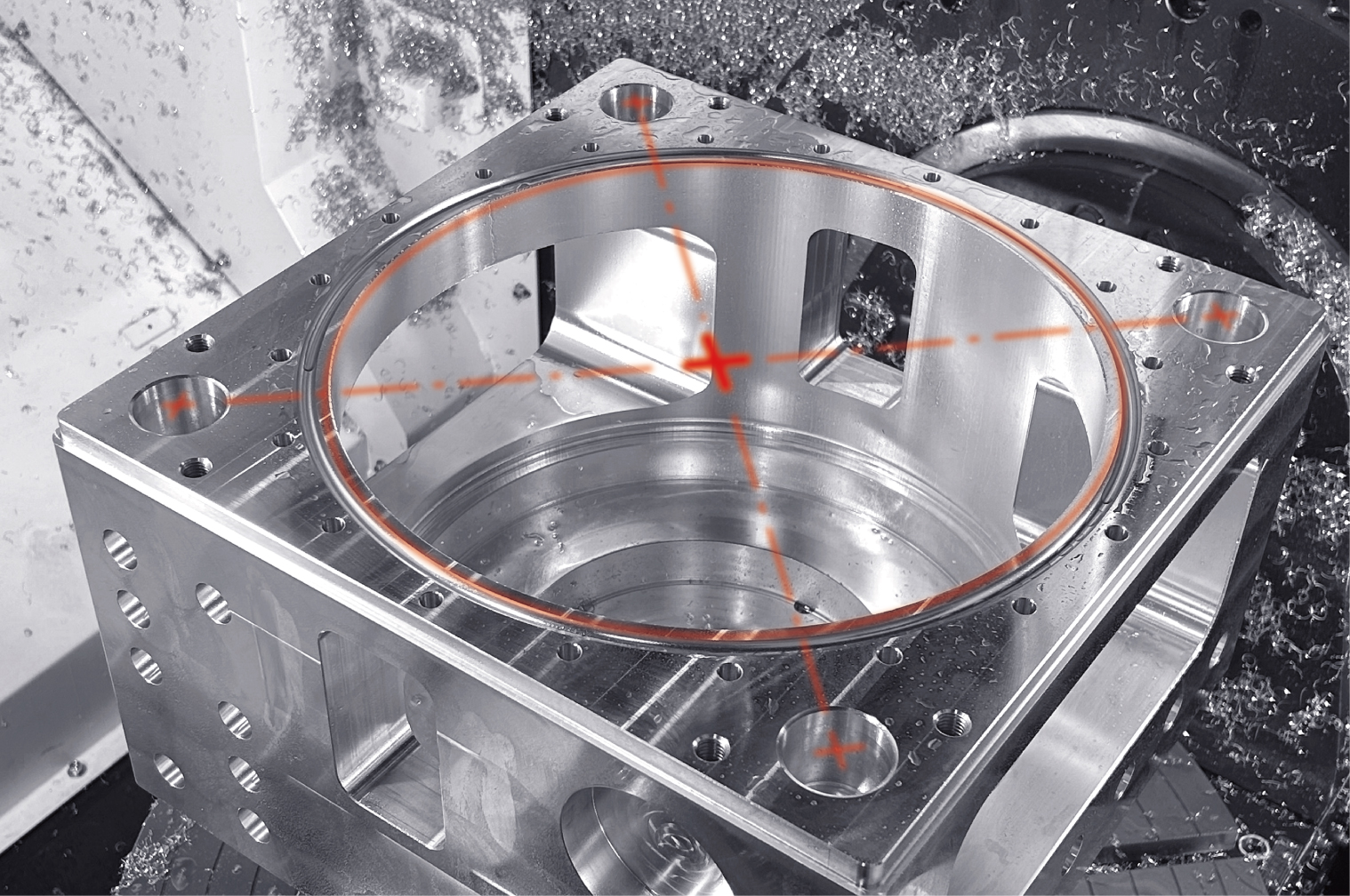

In semiconductor equipment, vacuum chambers are commonly manufactured using aerospace-grade aluminum alloy AL7075.

This material offers several important characteristics:

• High strength
• Lightweight structure
• Excellent mechanical properties
• Good machinability

However, during the machining process, AL7075 requires precise control of cutting tools and machining conditions. Without proper control, deformation or dimensional deviation may occur. Therefore, in semiconductor equipment manufacturing, high-rigidity and high-stability precision machining centers are typically required to ensure consistent machining quality and dimensional accuracy.

In precision manufacturing, relying solely on dimensional measurement is no longer sufficient to fully evaluate the quality of a component. Therefore, modern manufacturing widely adopts GD&T (Geometric Dimensioning and Tolerancing) to define the geometric accuracy of parts.

Common geometric tolerances include:

• Position
• Perpendicularity
• Parallelism

By using a CMM (Coordinate Measuring Machine), engineers can accurately measure the geometric characteristics of a workpiece and verify whether the part meets the specified design requirements and quality standards.

What is a 5-axis CNC machine tool?

A 5-axis CNC machine tool is a machining system capable of controlling five axes simultaneously. It allows multiple surfaces of a workpiece to be machined in a single setup, improving both machining accuracy and efficiency.

What applications are suitable for a 5-axis machining center?

Typical applications include semiconductor machining, mold machining, aerospace component manufacturing, and precision mechanical part machining.

Why does semiconductor machining require high-precision equipment?

Semiconductor equipment components must operate for long periods in high-vacuum environments. Therefore, geometric tolerances and surface quality must be strictly controlled, which requires high-precision machining equipment to ensure product reliability and performance.
