Double Column Machining Center (Linear guideway

ALL NEW INFINITY

HSA-427

Velocity / Smooth

Intelligent, High-efficiency & Excellent precision

More comprehensive functions provide you perfect solutions

One & only :


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

Hartrol Premium

One of Major 6 Brands of Self-Made NC Controllers Taiwan One and Only Hartrol Premium Controller


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

AI Technology

AI intelligent technology Automatic tuning parameter maintains accuracy


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Z axis four linear guideways

30% higher load capacity than two linear guideways of peers


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Design of one-piece column extended span

25% wider width, 15% rigidity increased


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
years

Ballscrew support

X/Y axis ballscrew support


0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
%

Slant beam of optimum streamlined design

Structure rigidity enhances beam rigidity, and cutting vibration is reduced, which is 30 % rigidity better than peers.

Hartrol Premium

Mechanism Design

Specifications

Related models

Hartrol Premium

Continuously surpass the limits of machines through AI technology

The application of AI technology makes the accuracy not affected by environmental factors, so that it can achieve high-precision machining under the room temperature and the machining efficiency is not affected by the weight of the workpiece and tool wear, as long as it is equipped with Apps developed by Hartford.

Remote Operation via Mobile Phone

Activate the mobile application feature to immediately access various information about the machine.

LSN - Load setting Navi

One Button Tuning, it can eliminate vibration and improve machining accuracy

CCD MONITOR(IP CAMERA)

Monitoring the live view inside the machine through IP CAMERA

Tool database

Short the time to select tool and improve the cutting efficiency

ECO MODE

Turn on ECO mode, the oil cooler will turn off when idle, helping to save energy by 40%

AI chip conveyor

Save power consumption of chip conveyor motor, also remove mass chips according to the spindle current

One & Only

Mechanism Design

test

test

HSA series = high rigidity + high-precision

Fantastic performance for any machining application

1. Z-axis four linear guideways three binding structure patented technology, two-way support provides 20% rigidity while cutting, bring you excellent performance.

2. Multiple choice of spindle , ex. DDS, gear head 8000 rpm

3. Self-made spindle, deflection within 5μm.


test

Slant beam design

test

X-axis three linear guideways

30% structure rigidity enhanced

Optimized structure design can enhance cutting stability and dynamic precision

1.The new slant beam design, effectively reduces vibration, enhance accuracy and surface sheet cleanliness during cutting.

2. Extra-large columns, the joint width between bottom of the column and the base increased to 1,250mm, effectively reduce overall vibration from cutting.

3. X-axis three linear guideways design for HSA-x28/x32/x36 series, and two guideway design for HSA-x23/x27/x212 series.

The X-axis three linear guideways design can be used to resist process rotation torsion and enhance rigidity by more than 50%. Moreover, the max. load of a workbench can be 30,000 kgs, thus allowing you to meet your processing needs and help you reach your accuracy and quality requirements.


High speed: Servo drive and counterweight design

test

Ballscrew support mechanism

test

3-axes direct drive

3-axes direct drive servo motor enhance efficiency and precision, Z axis nitrogen counterweight system provides cutting stability

1. 3-axes direct drive servo motor: effectively reducing the transmission backlash by more than

     30%.

2. Z axis nitrogen counterweight design: reduce the operating noise of the hydraulic tank,

    reduce the oil temperature by 50%, and effectively save energy by more than 20%.

3. With Ballscrew support, it can improve screw dead weight sagging and enhance the

     positioning accuracy & life of screw.

     X axis Ballscrew support, it is standard configuration for model above 5 meters and below 4

     meters is optional configuration.

     Y axis Ballscrew support, it is standard configuration for HSA-x36 series and option for

     HSA-x23/x27/x28 series.





Performance at the same level as Japanese machines

test

Face milling

test

Side milling

test

Tapping

test

Drilling

1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines

2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers


.Model:HSA-427

.Spindle:6,000 rpm gear head, 26kw

.Material:S45C

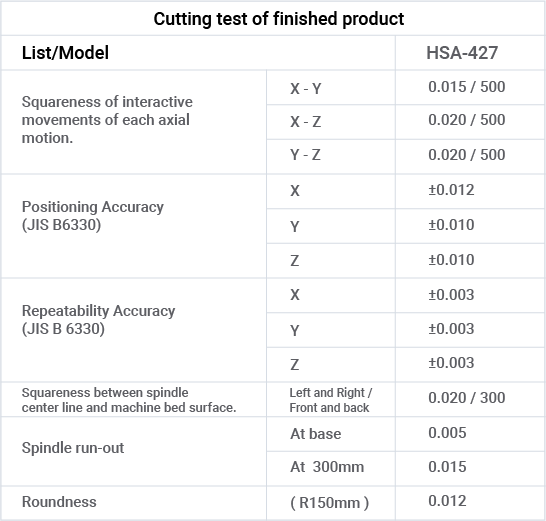

Inspection standard reaches the pursuit of perfection

It is guaranteed, the quality of each machine is almost zero defect

Inspection standard reaches the pursuit of perfection.

test

test

test

We guaranteed, the quality of each machine is almost zero defect.

Tolerance of 3D contouring accuracy conforms to the standard:

Result of 114 spots test is approved within tolerance (± 0.02mm).


OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.


Demonstrate the ultimate cutting efficiency and fantastic accuracy & smoothness of mold.

test

test

test

test

test

Specifications

Worktable

Worktable size

4000 x 2200

mm

Max. load (Average)

12000

kg

Travel

X axis travel

4000

mm

Y axis travel

2700

mm

Z axis travel

780, opt. 1000 / 1200

mm

Spindle

Spindle nose taper

#50

Spindle speed (DDS)

10000 / 12000

rpm

Spindle speed (Gear head)

6000 / 8000

rpm

Spindle speed (Built-in)

12000

rpm

ATC

Capacity

A: 32 ( 40 / 60 )

pcs

Tool shank

BT-50 ( CAT50 / DIN69871A / BBT50 )

Motor

Spindle drive motor (Cont. / 30min)

15 / 18.5 ( opt. 18.5 / 22, 22 / 26, 30 /37 )

kw
