Horizontal Machining Center
Monolithic Machine Base of LAUREL
With high rigidity, high-efficiency & excellent precision
One & only :
The application of AI technology makes the accuracy not affected by environmental factors, so that it can achieve high-precision machining under the room temperature and the machining efficiency is not affected by the weight of the workpiece and tool wear, as long as it is equipped with Apps developed by Hartford
Monitoring the live view inside the machine through IP CAMERA
Safety operation and enhance machine’s utilization
Operators can get suggested parameters to improve overall cutting efficiency
50% power consumption of chip conveyor motor saved, it can remove chips according to the spindle current
Short the time to select tool and improve the cutting efficiency
Activate the mobile application feature to immediately access various information about the machine.
1. One-piece design on column, 25% wider width, 15% rigidity increased, T-shape base features high stability, specially design on guideways, distance between linear guideways is 580mm; inside the casting are the anti-flex, vibration-absorbing ribs, makes the machine perfect for heavy-duty cutting.
2. Unique V-ribs delivers solid structure for horizontal machining center.
Auto pallet changer
Air blast in B-axis positioning cones
1.Auto pallet changer
Auto Pallet Changer system is anchored on the base
The APC of HMC is integrated on the machine base, free form an possibility of accuracy deviation. APC switching speed: 12 sec (servo-driven)
2.Air blast in B-axis positioning cones
Pallets are positioned on 4 taper cones in combination with air blast on cone surface and hydraulic drawbar.
Provides high rigidity and accuracy of the pallet
Prevents the ingress of cutting chip or fluid
1. One-piece design on spindle housing and head
Increases machine rigidity and cutting performance
Delivers higher support for spindle
2. ISO 50 Gear type spindle
Two-step transmission
High torque output in low speed, suitable for heavy-duty cutting
Spur gear with big modulus delivers high rigidity and low abrasion
Face milling
Side milling
Tapping
Drilling
Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines
．Model：HMC-600
．Spindle：#50 6,000 rpm gear head, 18.5kw
．Material：S45C

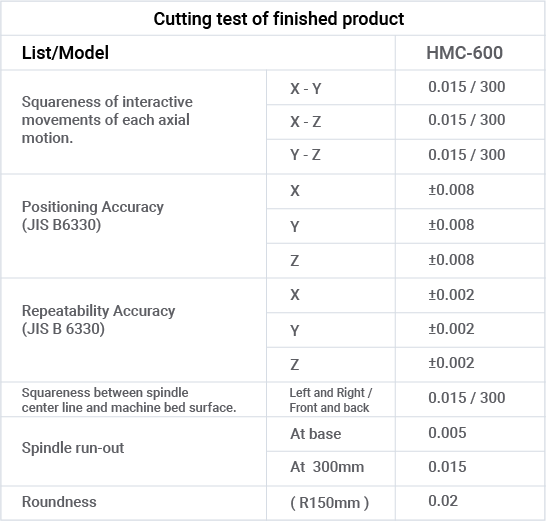

Tolerance of 3D contouring accuracy conforms to the standard:
Result of 114 spots test is approved within tolerance (± 0.02mm).
OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.
Worktable size
630 x 630
mm
Max. load (Average)
600
kg
X axis travel
750
mm
Y axis travel
700
mm
Z axis travel
650
mm
Spindle nose taper
#50
Spindle speed (Gear head)
6000
rpm
Capacity
A : 40 / 60 / 90
pcs
Tool shank
BBT50 ( CAT50 / DIN69871)
Spindle drive motor (Cont. / 30min)
15 /18.5 opt. 18.5 / 22, 22/26
kw
