Gantry type 5-faced machining center
Solid support for rigid machining
Extreme rigidity and stability design
One & only :
Accuracy is not affected by environmental factors due to AI Tech application. Efficiency of machining is enhanced as factory ambient temperature remains constantly, and not affected by workpiece weight and the wear of tools. Thanks to automatic operation function, which it is similar to autopilot of Tesla.
Activate the mobile application feature to immediately access various information about the machine.
One Button Tuning, it can eliminate vibration and improve machining accuracy
Monitoring the live view inside the machine through IP CAMERA
Suitable for processing settings on angled heads and inclined surfaces, simplifying your processing procedures
Save power consumption of chip conveyor motor, also remove mass chips according to the spindle current
23% efficiency increased on Heavy cutting and save cost of tooling
High Efficient Spindle
Hartford self-made i-Tech hybrid 10,000 rpm spindle (optional)
‧Double cooling cycle design for motor and spindle
‧Cooling cycle design
• Built-in motor - maximum 35kW, 600N-m
Auto head changing cabin and V/H tool change system
2 axis head
1. Can operate with auto universal head / 90 degree head / extension head.
2. The full automatic head changer is provided with the protective cover and independent head magazine.
3. The hydraulic cylinder is used for fast head changeover.
4. Each magazine is provided with an independent moving door that is opened only during the head changeover to prevent debris from contaminating heads.
5. Additional head magazines are also available.
AERO-screw support mechanism
1. Improve screw dead weight sagging ; enhance the positioning accuracy and lifespan of screw.
2. increase one level of screw specification; lift static rigidity.
1. Decades of machine tool manufacturing technology, plus new developed AI technology, makes the machining accuracy/efficiency/finish almost equal to the level of Japanese machines
2. “Super Speed Cycle time” makes cutting efficiency 15% ~ 50% higher than Taiwanese peers
．Model：Aero-536B
．Spindle：Gear spindle 6,000 rpm 2kW
．Cutting material：Alumium die cast ADC12

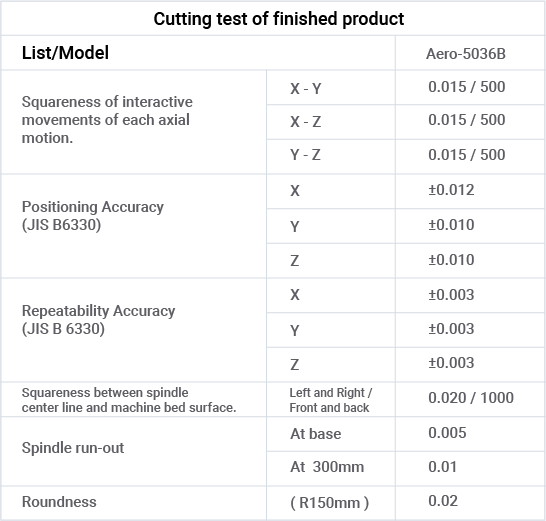

Tolerance of 3D contouring accuracy conforms to the standard:
Result of 114 spots test is approved within tolerance (± 0.02mm).
OMV (On Machine Verification): 3D Inspection is directly employed based on OMV system, which ensures each workpiece is qualified, and efficiency is enhanced to reduce time on workpiece upload/load on the table.
Worktable size
5000 x 3100
mm
Max. load (Average)
5000
Kg/m2
X axis travel
5000
mm
Y axis travel
3600
mm
Z axis travel
1000 (1200 opt)
mm
Spindle nose taper
#50
Spindle speed (Gear)
6000 (8000 opt)
rpm
Capacity
S type 30 (opt 40), A type 40 (opt 60)
pcs
Tool shank
BT-50 ( CAT50 / DIN69871A / BBT50 )
